Cinelli Zydeco E-MUD Gravelbike

T800 Monocoque carbon frame and fork for 12,8kg complete bike weight
100km or 1000m ascent range for new adventures

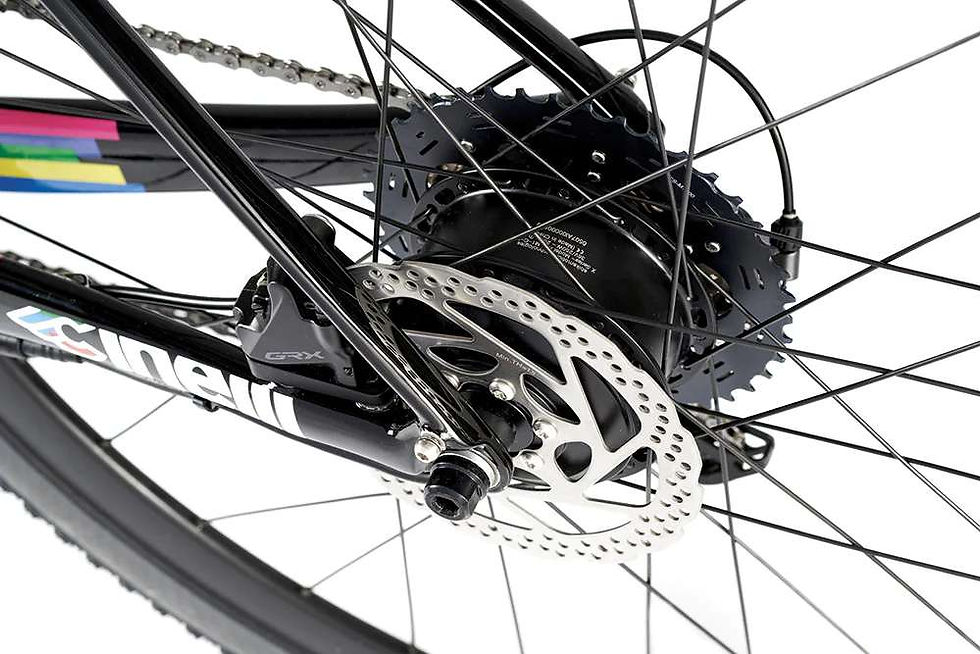

Internal hub motor allows for the E–Mud to maintain a 100% pure gravel geometry
Dedicated app for all functions, custom configurations and detailed info
MAHLE Ebikemotion X35 / 250Wh Batterie

The Zydeco E-Mud is Cinelli’s first e-bike, fruit of our experience developing the iconic King Zydeco. The E-Mud in fact maintains the same geometry and mould features of the King to guarantee a pure, unadulterated fast gravel feeling for the E-Mud. The use of an internal hub in fact allows for shorter chainstays than other Gravel e-bikes on the market and thus a faster, funner ride. Other features include 12,8kg complete bike weight, 100km or 1000m ascent range and a dedicated app for custom configurations and data.

Sizes: S (47) - M (50) - L (53)
Material: Columbus Carbon Monocoque
Headset: IS 42/28,6 | IS 52/40
Seatpost: Ø 27,2 mm
Seat Clamp: Ø 31,8 mm Included
BB Shell: Press Fit 86,5x41
Ft. derailleur: Braze-on
Routing: Internal - Di2 compatible
Color: Fullcolor
Tyre Clear.: up to 700x44 / 650x48

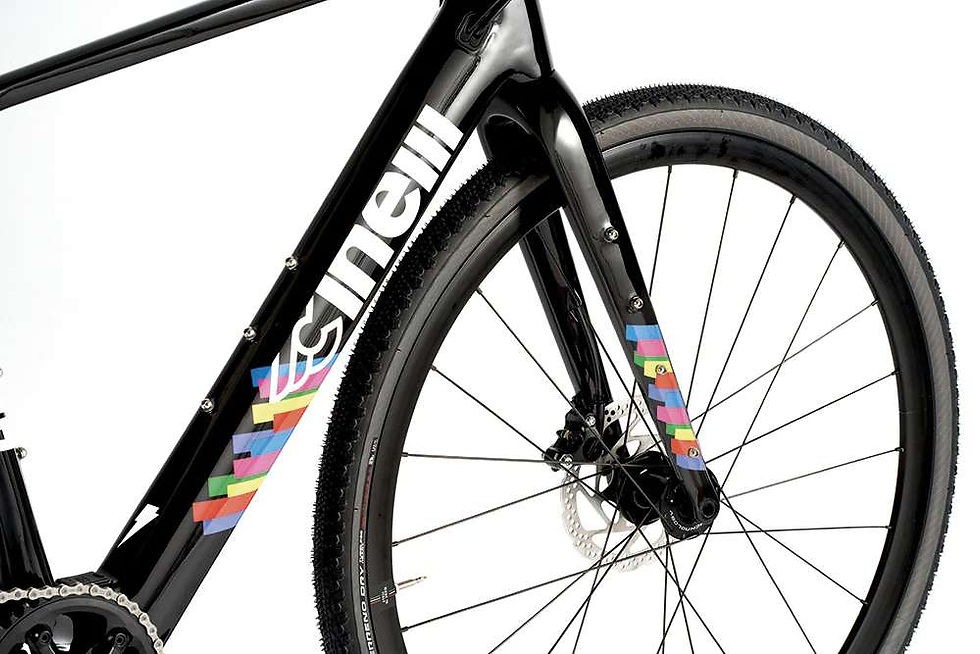

Fork: Columbus Disc tapered 1-1/2” Carbon Monocoque
Weight: Frame 1420 g. (size M) Fork 450 g. (uncut)
Brake: Flat Mount, Rotor Size Up to 160 mm
Dropouts ST: Front TA Ø12x100mm / M12x1,5 L125mm skewer (included) Rear Ebikemotion axle standard O.L.D. 136mm
Highlights: Di2 cable inserts / Front skewer / Rear carrier eyelets

Drivetrain: Cinelli 6061 Ø 31,8 Drop 120 mm (40) 130 mm (42) - Reach 70 mm - Flare angle 12° / S 40 - M 42 - L 42
Handlebar: Cinelli 6061 Ø 31,8 Angle 6° H 40 mm / S 90 - M 100 - L 110
Stem: Cinelli 6061 Ø 27,2 L 350
Seatpost: Shimano GRX ST-RX400 1X11
Shifters: Shimano GRX 400 BR-RX400
Brakes: Shimano SM-RT70 160mm Center Lock
Rotors: /
Ft. derailleur: Shimano GRX RD-RX812
R. derailleur: FSA Gossamer 1X / 40T/ S 170 - M 172,5 - L 172,5
Crankset: FSA Pressfit 86,5X41 mm
Cassette: Shimano SLX CS-M8000 / 11-42 / 11s
Chain: Shimano CN-HG601
Wheelset: HY-NDR30AC
Tyres: Vittoria Terreno Dry 700x40C
Saddle: Selle Italia Model X
Tape: Cinelli Cork
